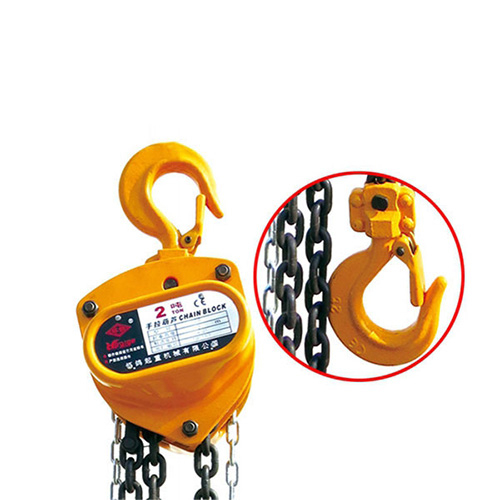

Lifting Chain: this G80 lifting chain has been treated with a special heat treatment to ensure its excellent tensile strength.
Pulley Hook: The opening of the pulley hook is wider, which make operation more convenient. Even when overloaded, the hook will not break, but will be straightened step by step, so as to minimize the loss caused by falling loads.
Gear box: the strong frame and strong gear box can protect internal parts such as gears from damage, and the anti-fall effect of the box is remarkable.
Hand chain driven: This hand chain drive is designed with deep grooves. Even when pulled obliquely, the hand chain driven can maintain smooth and stable performance.
Shell: the shell is made of high-strength and ultra-thick metal sheet at one time, making it extremely strong and durable.
Thickened friction discs result in longer service life
The lifting chains are equipped with guide wheels, which can effectively prevent the chain from jamming.
The double pawl brake system greatly improves the brake safety level.
Parameter
| Model | CB-Ⅱ 1T | CB-Ⅱ 1.5T | CB-Ⅱ 2T | CB-Ⅱ 3T | CB-Ⅱ 5T | CB-Ⅱ 10T | |
| Capacity (T) | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Lifting height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | |
| Load Chain | No.ofs | 1 | 1 | 1 | 1 | 1 | 4 |
| Dimension | 6×18 | 7.1×21 | 8×24 | 10×30 | 9×27 | 10×30 | |
| Force of full load | 250 | 265 | 335 | 372 | 360 | 380 | |
| N.W/G.W (KG) | 14.5/15 | 16.5/17 | 19.5/20.1 | 32/34 | 41.1/43.6 | 75.7/79.1 | |
| Additional weight per 1M lift (kg) | 0.8 | 1.1 | 1.4 | 2.2 | 3.8 | 8.8 | |
