Main parameters
Lifting weight: 0.25-16T
Lifting height: 3-30m
Maximum lifting speed: 8m/min

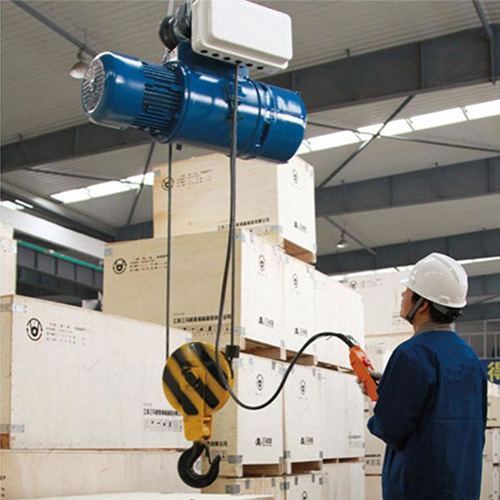

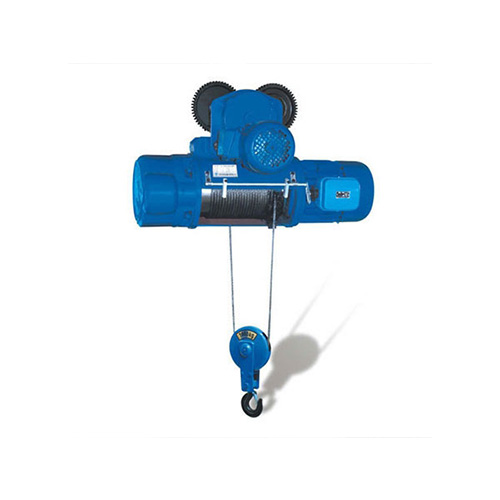

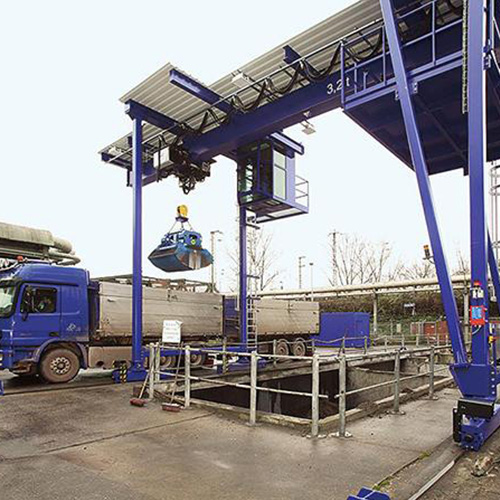

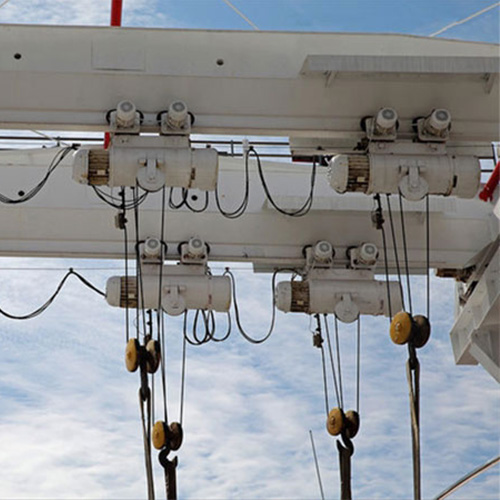

This CD1/MD1 Series Electric Hoist can be installed on single-girder cranes, bridge cranes, gantry cranes, cantilever cranes and other cranes. If slightly modified, it can also be used as a winding engine. Therefore, this product is one of the most commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, shops and so on. It is a necessary machine to increase labor efficiency and improve working conditions.
Parameter
| Model | 0.25-3A | 0.25-6A | 0.25-9A | 0.5-6A | 0.5-9A | 0.5-12A | 1-6A | 1-9A | 1-12A | 1-18A | 1-24A | 1-30A | 2-6A | 2-9A | 2-12A | 2-18A | 2-24A | 2-30A | 3-6A | 3-9A | 3-12A | 3-18A | 3-24A | 3-30A | 5-6A | 5-9A | 5-12A | 5-18A | 5-24A | 5-30A | 10-9A | 10-12A | 10-18A | 10-24A | 10-30A | 16-9A | 16-12A | 16-18A | |
| Rated Volt (V) | Three Phase AC 380V 50HZ | ||||||||||||||||||||||||||||||||||||||
| Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |||||||||||||||||||||||||||||||
| Lifting Height (M) | 3 | 6 | 9 | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | |
| Lifting Speed (M/MIN) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 7/0.7 | 3.5/0.35 | |||||||||||||||||||||||||||||||
| Wire Rope | Diameter (MM) | 3.6 | 4.7 | 7.7 | 11 | 13 | 15.5 | 15.5 | 15.5 | ||||||||||||||||||||||||||||||
| Size | 6*19 | 6*37 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | |||||||||||||||||||||||||||||||
| Length (M) | 7.5 | 13.5 | 19.5 | 14.43 | 20.43 | 26.43 | 14.65 | 20.65 | 26.65 | 38.65 | 50.65 | 62.65 | 15.4 | 21.4 | 27.4 | 39.4 | 51.4 | 63.4 | 15.85 | 21.85 | 27.85 | 39.85 | 51.85 | 63.85 | 16.4 | 22.4 | 28.43 | 40.43 | 52.43 | 64.43 | 43 | 55 | 79 | 103 | 127 | 44 | 56 | 80 | |
| Motor | Power (kw) | 0.4 | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 | ||||||||||||||||||||||||||||||
| Speed (R/MIN) | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | |||||||||||||||||||||||||||||||
| Current (A) | 1.25 | 2.4 | 4.3 | 7.6 | 11 | 18 | 30 | 30 | |||||||||||||||||||||||||||||||
| Moving Motor | Power (kw) | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | 0.8*2 | ||||||||||||||||||||||||||||||
| Speed (R/MIN) | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||||||||||||
| Current (A) | 0.3 | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2*2.4 | |||||||||||||||||||||||||||||||
