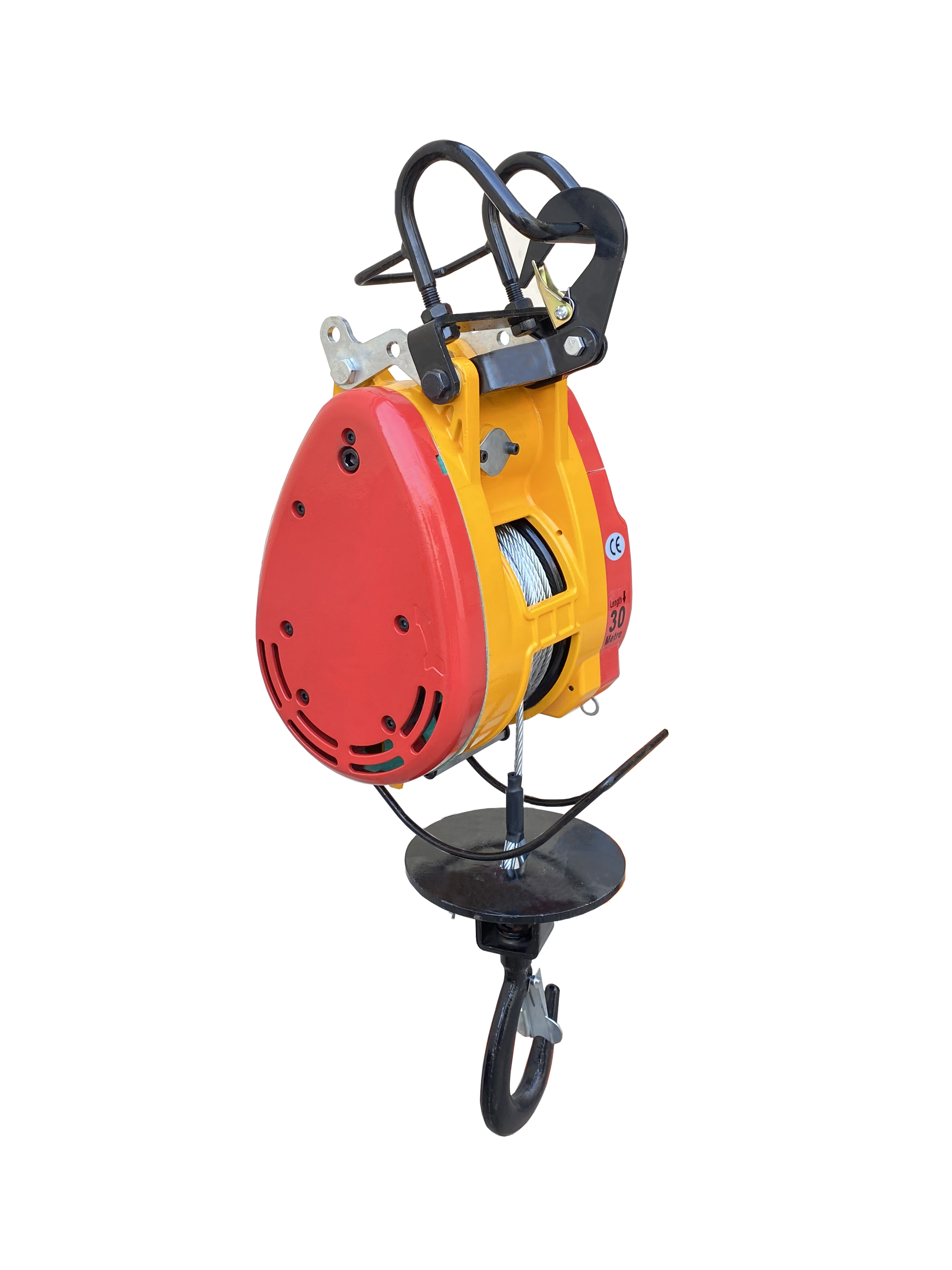

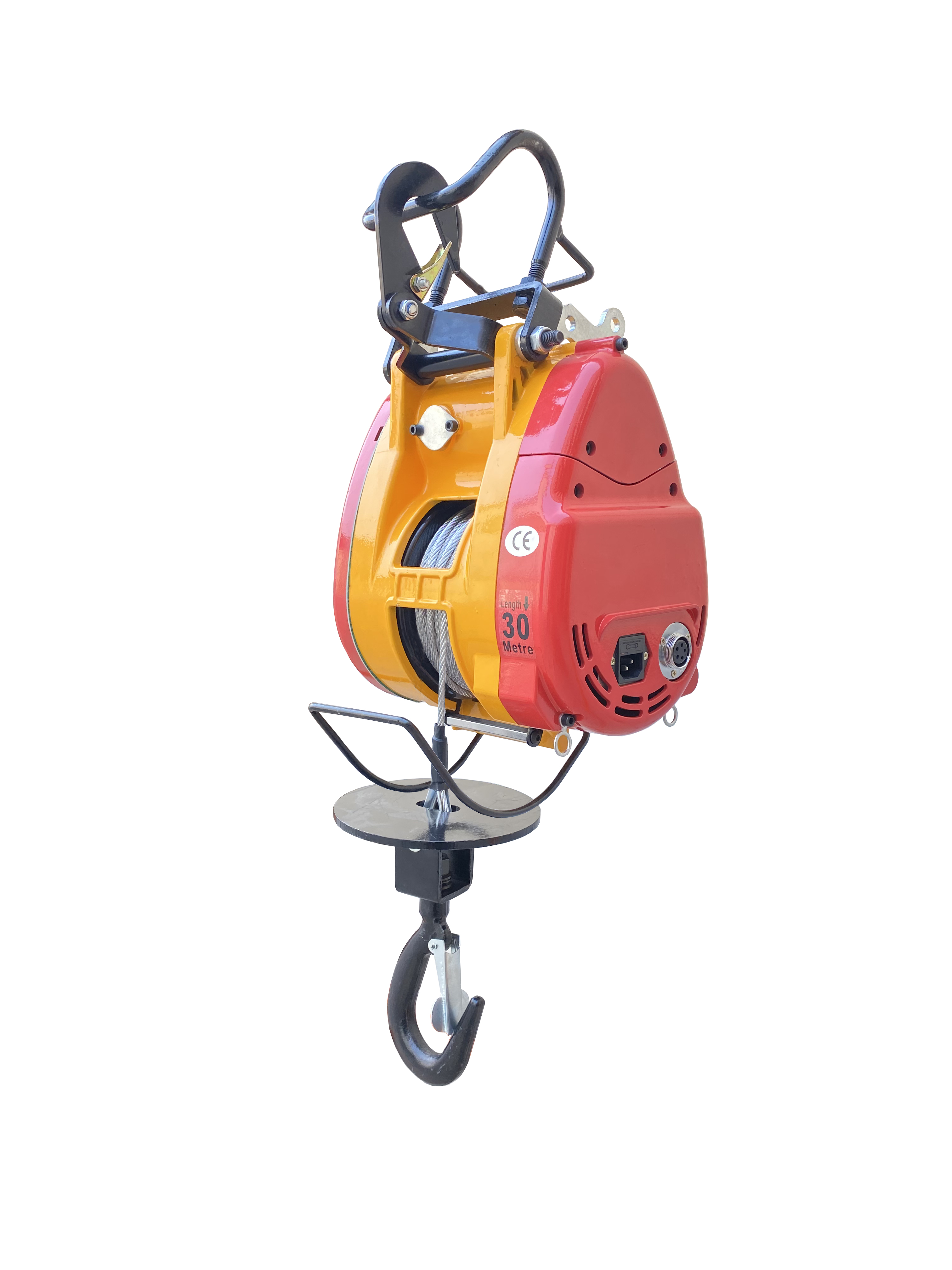

Suitable for hanging and lifting the structure, curtain-wall glass, advertising board and other materials for storage or freight transportation. It had the advantages of compact structure, high efficiency, light weight and easy to use power supply, and also cost saving.
Advantages :
Patented design, better heat dissipation than regular products, and longer motor working time
Model | Capacity | Voltage | Lifting Speed | Motor Power | Wire Rope |
S160 | 160kg |
220v-50hz
| 19m/min | 1300W | 30m(5mm) |
S180 | 180kg | 19m/min | 1550W | 30m(5mm) | |
S200 | 200kg | 19m/min | 1550W | 30m(5mm) | |
S230 | 230kg | 19m/min | 1650W | 30m(5mm) | |
S250 | 250kg | 19m/min | 1650W | 30m(5mm) | |

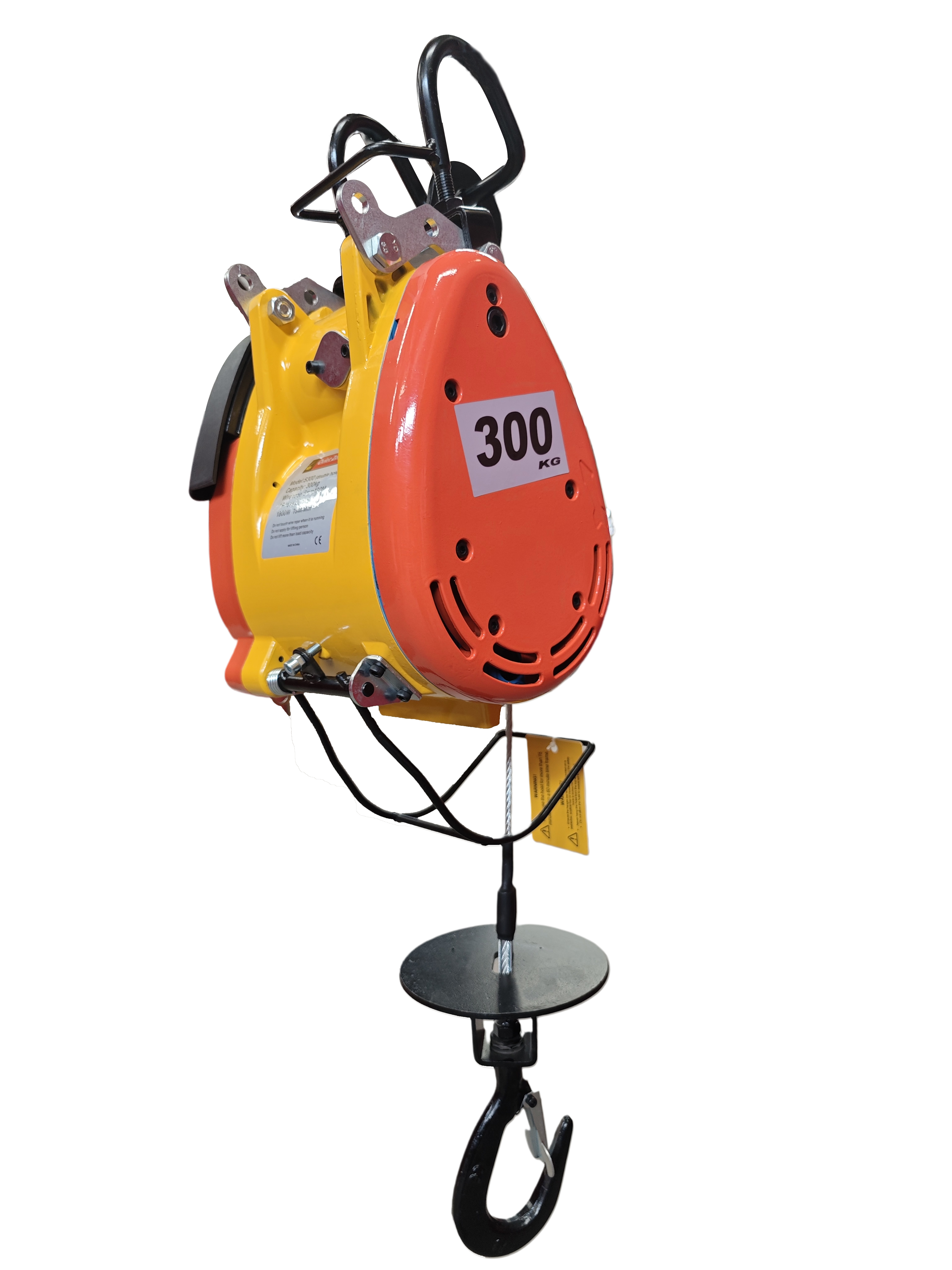

S300 | 300kg | 19m/min | 1800W | 30m(5mm) | |
S500 | 500kg | 13m/min | 1900W | 30m(5mm) |
