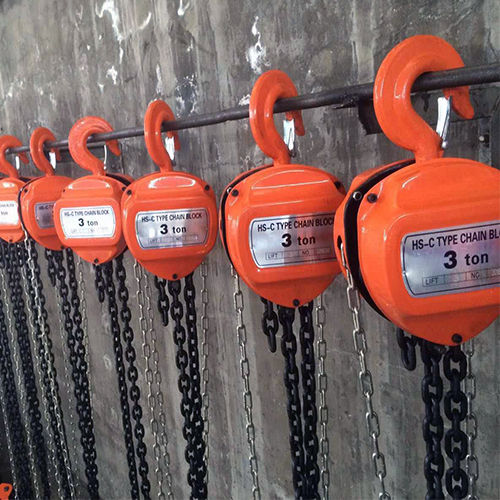

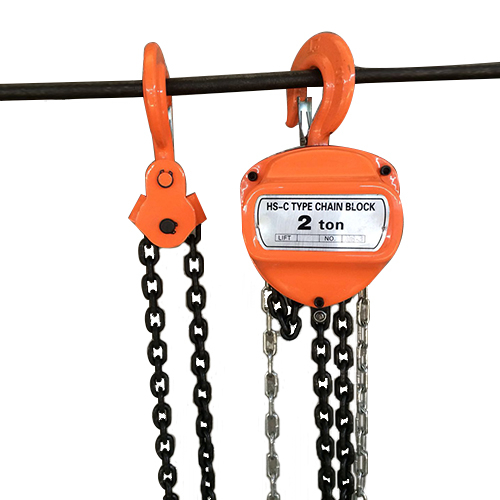

The HSC Series Chain Block is designed to be integrated for concise, efficient and economical lifting jobs. The compact design, low headroom, high-quality steel shell enable this hoist to be easily installed and operated in narrow spaces.
Features
Double-pawl brake system and more elastic pawl spring ensure the braking stability of this product.
The double guide wheel structure makes the lifting wheel more stable, and it will effectively prevent chain from jamming.
This hand chain driven is designed with folding sides. Even being pulled obliquely, the hand chain driven can maintain smooth and stable.
The product is light in weight and easy to carry.
Parameter
| Model | Capacity (T) | Standard lifting height (M) | Running test load (T) | No.offalls of load chain | Load chain diameter (MM) | Net weight (KG) |
| HS-C 0.5T | 0.5 | 2.5 | 0.75 | 1 | 6 | 8 |
| HS-C 1T | 1 | 2.5 | 1.5 | 1 | 6 | 10 |
| HS-C 1.5T | 1.5 | 2.5 | 2.25 | 1 | 8 | 16 |
| HS-C 2T | 2 | 3 | 3 | 2 | 6 | 14 |
| HS-C 3T | 3 | 3 | 4.5 | 2 | 8 | 24 |
| HS-C 5T | 5 | 3 | 7.5 | 2 | 10 | 36 |
| HS-C 10T | 10 | 3 | 12.5 | 4 | 10 | 68 |
| HS-C 20T | 20 | 3 | 30 | 8 | 10 | 156 |
Wanhua provides customers with a wide selection of lifting equipment. We design and produce electric hoists, chain hoists, air hoists, trolleys, pallet lift trucks, and much more. These products can be customized according to your voltage and weight needs. Contact us to learn more.
