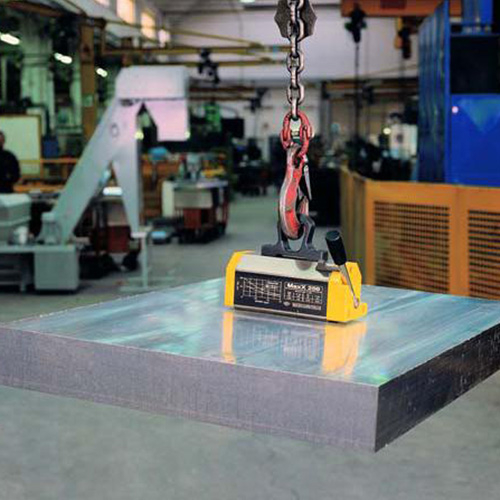

The main advantage of the industrial magnetic lifter is that it does not need a power supply. This product is a power-free lifting equipment.
The industrial magnetic lifter is suitable for handling steel plate, iron block and cylindrical iron, such as mechanical parts, punch dies and various steel materials.
Characteristic
This product uses high performance permanent magnet material with strong holding force. The unique magnetic circuit design ensures that the residual magnetism is almost zero.
The product has high safety level and the maximum pulling-off force is three times of the rated lifting force.
The handle switch is equipped with a safety button, which can be operated by one hand. This design makes it more convenient and safe when using.
Parameter
| Model | Capacity (kg) | Breaking Strenght (kg) | N.W.(kg) |
| SYB-100 | 100 | 300 | 4 |
| SYB-400 | 400 | 1200 | 11 |
| SYB-600 | 600 | 1800 | 20 |
| SYB-1000 | 1000 | 3000 | 40 |
| SYB-1500 | 1500 | 3750 | 48 |
| SYB-2000 | 2000 | 5000 | 60 |
| SYB-3000 | 3000 | 7500 | 90 |
| SYB-4000 | 4000 | 10500 | 120 |
| SYB-5000 | 5000 | 15000 | 400 |
