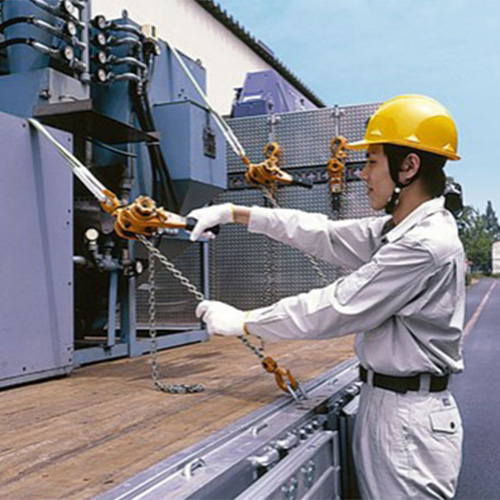

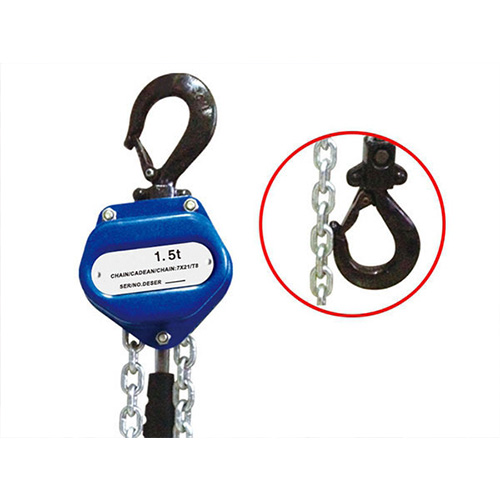

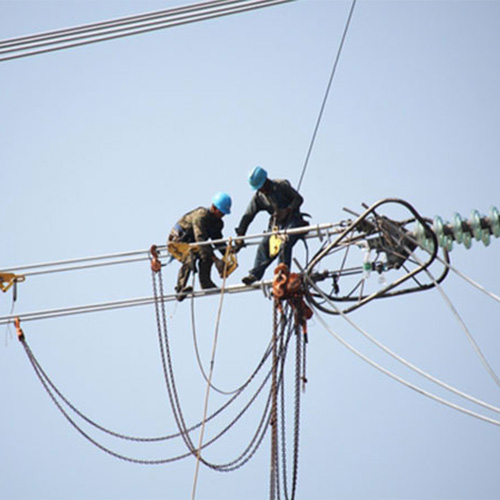

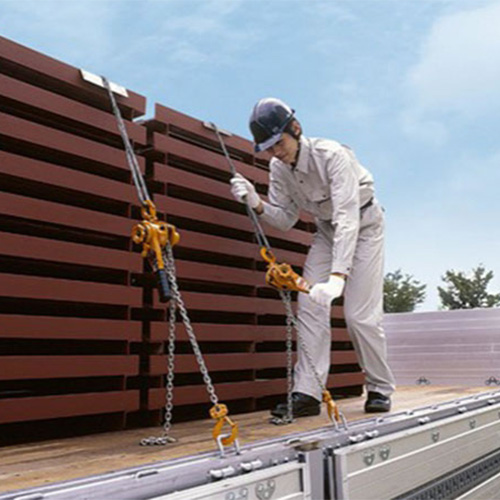

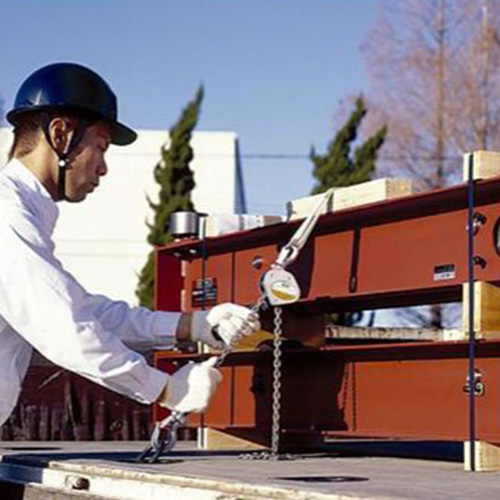

Advantages of the manual chain lever hoist VD series hoist: because of its ultra-small structure and light weight, this hoist is especially suited for high altitude operation and narrow space operation. This product can be easily used to fasten goods, fix objects and correct their positions. The handle of this product is specially designed. The pulley hook is made of 35CRMO, and the hook frame adopts forging technology. Besides, the equipped safety device inserted inside of the hook will ensure the safety when operating.
Parameter
| Item No. | VD-250 | VD-500 | VD-750 | VD-1500 | VD-2500 | VD-3000 | VD-5000 | VD-6000 | |
| Rated Load | kg | 250kg | 500kg | 750kg | 1500kg | 2500kg | 3000kg | 5000kg | 6000kg |
| Standard Lift Height | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Han-Pull to Lift | N | 260 | 260 | 220 | 240 | 330 | 360 | 370 | 370 |
| Test Load | kg | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 7500 |
| Chain Diameter×LineNumber | mm | 4×12 | 4×12 | 5×15 | 7×21 | 9×27 | 9×27 | 9×27 | 9×27 |
| Net Weight | kg | 2.2 | 3.2 | 4.7 | 7.6 | 14 | 14 | 24.5 | 24.5 |
| Packing Dimension | mm | 205*115*110 | 215*115*120 | 300*140*145 | 310*180*160 | 440*200*190 | 440*200*190 | 500*190*180 | 500*190*180 |
