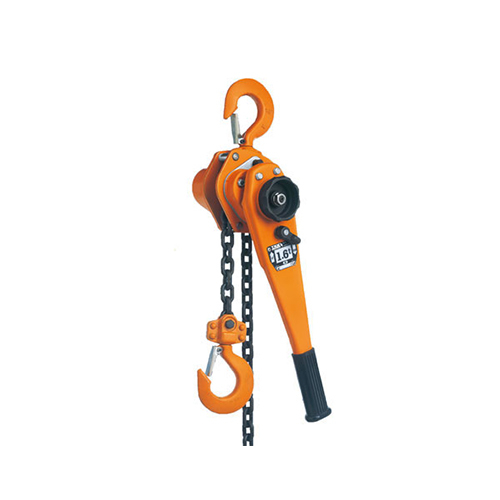

The manual chain lever hoist VL series hoist is a light, small and multifunctional piece of manual lifting equipment, which is usually used for installing equipment, lifting articles, pulling goods, bundling parts and drawing lines in power, mining, shipbuilding, construction, transportation, post and telecommunications application. This product performs especially well in pulling objects from various angles in narrow workplaces, field operations at high altitude.
Characteristics
The product is compact in structure, light in weight and easy to carry.
Double pawl brake makes it safe and reliable when braking.

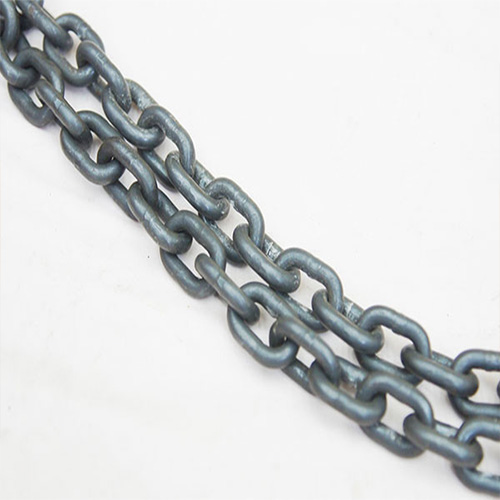

The heat-treated steel plate, gear and shaft make the hoist be of higher strength. The forged pulley hooks are equipped with safety locking devices and high strength metal chains to ensure its safety when using.
The one-direction mechanical rotating chain can be adjusted conveniently and quickly.
The handle can be adjusted in 360°, which is convenient for use in narrow space.
Each wire rope must be tested. The experimental fatigue strength of steel wire is 1.5 times of the rated value, which ensures that the rope can be used for more than 2000 times.
Parameter

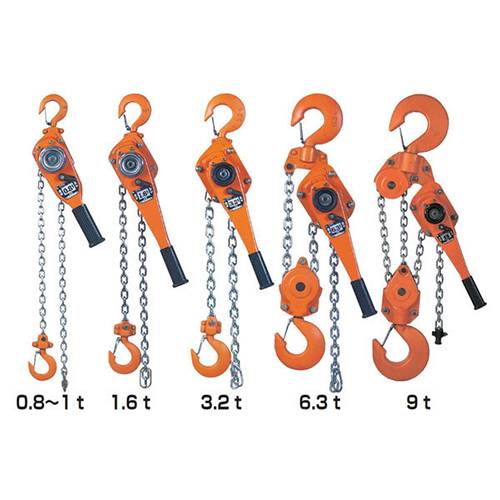

| Model | Capacity (T) | Standard lifting height (M) | Running test load (T) | No.offalls of load chain | Load chain diameter (MM) | Net weight (KG) |
| VL 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6.3 | 6.6 |
| VL 1.5T | 1.5 | 1.5 | 2.25 | 1 | 7.1 | 11 |
| VL 3T | 3 | 1.5 | 4.5 | 1 | 9 | 17 |
| VL 6T | 6 | 1.5 | 9 | 2 | 9 | 27.5 |
| VL 9T | 9 | 1.5 | 13.5 | 3 | 9 | 47 |
