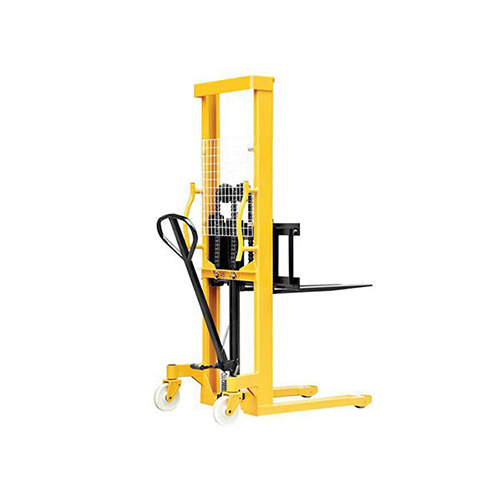

The manual pallet stacker is used for manpower operations, such as loading and unloading goods, stacking and short-distance handling. This product has a simple structure to ensure its flexible operation. The stacker has the advantages of no energy consumption and high explosion-proof performance. It is suitable for working in narrow passages and areas with limited space. This stacker is ideal equipment for loading and unloading work in high rack warehouses and workshops. It is widely used in petrochemical, pharmaceutical, textile, military, painting, coal and many other industries, as well as for ports, railways, freight yards, warehouses and other places containing explosive mixtures. This stacker is able to enter the cabin, carriage and container for handling, loading and stacking operations.
Characteristic
The product uses channel steel, I-beam steel and heavy "C" structural steel as its column. The cold bending forming process makes the portal frame stronger, safer, flexible and easy to operate.
The cylinder uses high precision abrasive pipe, imported oil seal and one-piece valve core, which is convenient for disassembly and maintenance. The pressure relieving process can be operated by foot, of which the lifting speed is stable, as a result, its safety has been greatly improved.
Parameter
| Model | 1T | 2T | 2.5T | 3T |
| Min Fork Height (mm) | 65 | 75 | 85 | 85 |
| Max Fork Lifting Height(m) | 1.6 | 1.6 | 1.6 | 1.6 |
| Fork Length (mm) | 900 | 900 | 1000 | 1100 |
| Fork Width (mm) | 640 | 640 | 700 | 740 |
| Front Wheel Diameter (mm) | 59*71 | 59*71 | 46*60 | 59*75 |
| Back Wheel Diameter (mm) | 59*71 | 59*71 | 46*60 | 59*75 |
| Wheel Width (mm) | 59*71 | 59*71 | 59*71 | 59*71 |
| N.W.(KG) | 140 | 150 | 170 | 290 |
