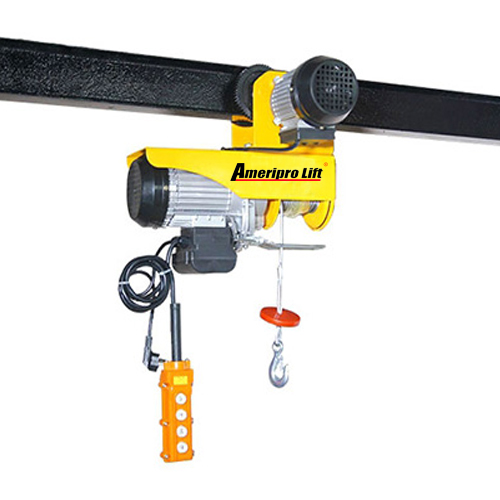

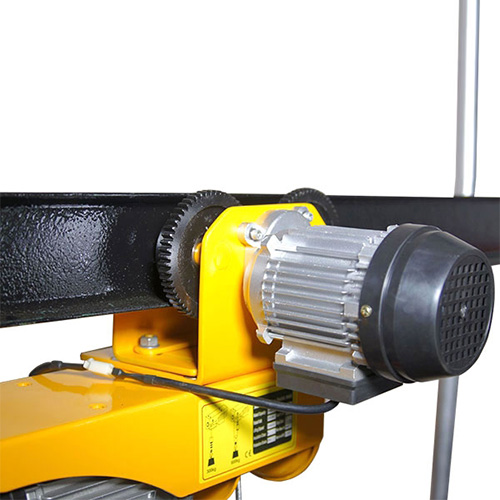

The hoist can only move up and down, and the electric hoist trolley can only move left and right, which is not convenient for use in practical applications. The overhead crane hoist combines the hoist with the electric hoist trolley together, allowing it to move freely in four directions and making it more convenient to use. This product is widely used in factories, wharfs, warehouses, construction sites and other occasions where heavy objects need to be moved.
The rotor of this product is made using high quality aluminum to ensure that the speed of the rotor is no lower than the specified speed of the motor. The spindle uses a strong magnetic chip to ensure the lifting strength of the motor. The motor shell is made of cast aluminum with heat sinking holes, which is excellent in heat dissipation performance. The color of the shell can be customized according to customer needs.
Characteristic
Permissible voltage: 110V, 220V and 380V.
Easy to install and operate.
Unique design of balance wheel can make the product run smoothly on I-beam.
The hoist trolley has small turning radius, which makes its turning smooth.
Parameter
| Model | Hook | Rated voltage (v) | Input power (w) | Rated capacity (kg) | Lifting speed (m) | Max height (m) | Qty/CTN (pcs) | Packing size (mm) | G.W/N.W (kg) |
| PA200A | single-hook | AC220/230V 50/60Hz | 550 | 100 | 10 | 12 | 2 | 36x 30.5x24 | 23/22 |
| double-hook | 200 | 5 | 6 | ||||||
| PA250A | single-hook | 600 | 125 | 10 | 12 | 23.5/22 | |||
| double-hook | 250 | 5 | 6 | ||||||
| PA300A | single-hook | 650 | 150 | 10 | 12 | 24/23 | |||
| double-hook | 300 | 5 | 6 | ||||||
| PA400A | single-hook | 950 | 200 | 10 | 12 | 44x 32.5x25.5 | 33/32 | ||
| double-hook | 400 | 5 | 6 | ||||||
| PA500A | single-hook | 1020 | 250 | 10 | 12 | 34/32.5 | |||
| double-hook | 500 | 5 | 6 | ||||||
| PA600A | single-hook | 1200 | 300 | 10 | 12 | 36/34 | |||
| double-hook | 600 | 5 | 6 | ||||||
| PA800A | single-hook | 1300 | 400 | 8 | 12 | 39/37 | |||
| double-hook | 800 | 4 | 6 | ||||||
| PA1000A | single-hook | 1700 | 500 | 8 | 12 | 1 | 56x 24.5x31.5 | 33/31 | |
| double-hook | 1000 | 4 | 6 | ||||||
| PA1200A | Single-hook | 1900 | 600 | 8 | 12 | 56x24.5x31.5 | 34/32 | ||
| Double-hook | 1200 | 4 | 6 |
Wanhua provides customers with a wide selection of lifting equipment. We design and produce electric hoists, chain hoists, air hoists, trolleys, pallet lift trucks, and much more. These products can be customized according to your voltage and weight needs. Contact us to learn more.
Details of core components
 |  |  |

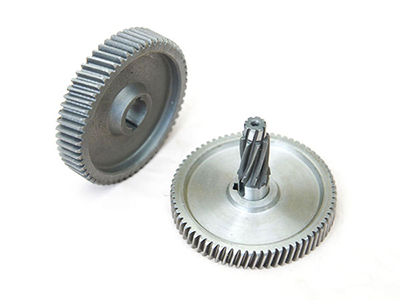

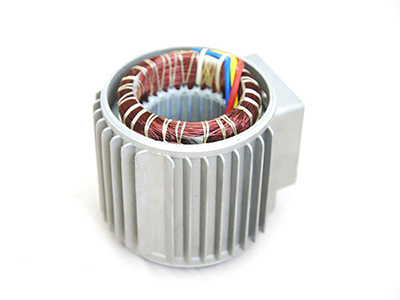

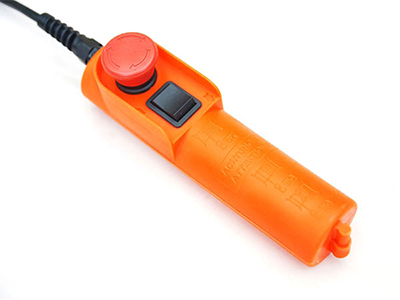

| Electrical-coilThe motor uses high quality copper wire which has good conductivity. The outer surface of the coil is covered with insulating material. | Helical gearHigh precision helical gear can greatly reduce working noise. | HandleThe handle is equipped with an emergency stop switch making it safe to use. |
 |  |  |

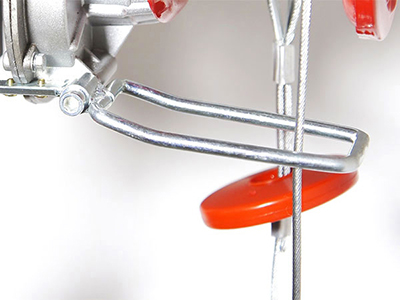

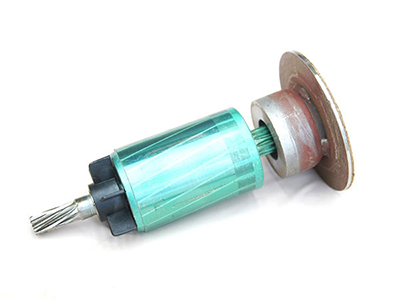

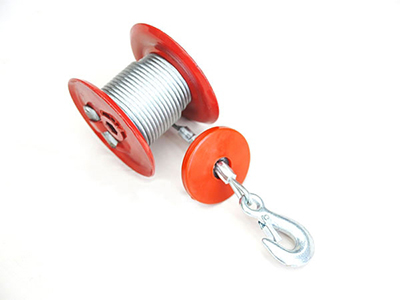

| Stop blockThe device can prevent motor from reversing and collision. | Wire ropeHigh quality wire rope offers good flexibility. Its tensile strength is more than 1770N/mm2. | Magnetic Brake DeviceThe great magnetic brake device has passed 72 hours of continuous full loading test, and the lifted weight did not slip. |
