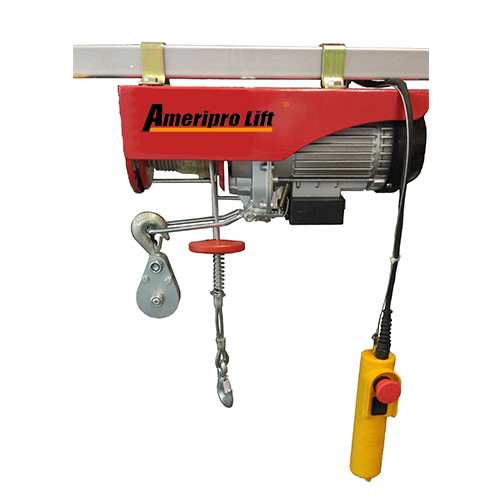

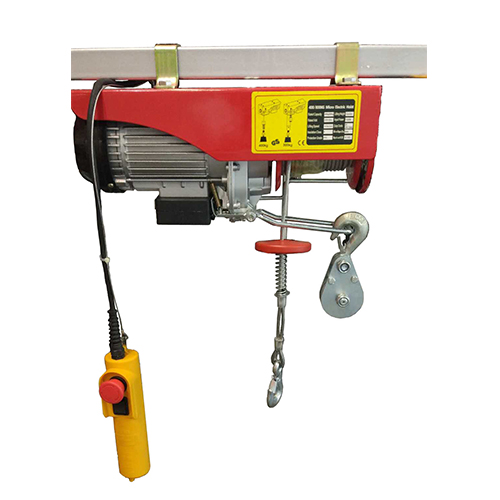

The PA-M series mini electric hoist made by WANHUA is suitable for European market. With CE,GS certificates, this type of electric hoist equipment can assure you of high quality and great safety. When designing this high quality and high performance electric power hoist, we take safety and durability into the first consideration. To ensure definite safety, we adopt emergency stop switch and double reset switch as its standard switch configuration.
Parameter
Model | Method of Use | Rated Voltage (v) | Input Power (w) | Rated Capacity (kg) | Lifting Speed (m/min) | Lifting Height (m) | Qty/ CTN (pcs) | Packing Size (mm) | G.W/ N.W (kg) |
PA200M | Single-Hook | AC220/ 230V 50/60Hz | 450 | 100 | 10 | 12 | 2 | 36 × 30.5 × 24 | 23/22 |
Double-Hook | 200 | 5 | 6 | ||||||
PA400M | Single-Hook | 750 | 200 | 10 | 12 | 44 × 32.5 × 25.5 | 33/32 | ||
Double-Hook | 400 | 5 | 6 | ||||||
PA600M | Single-Hook | 1050 | 300 | 10 | 12 | 36/34 | |||
Double-Hook | 600 | 5 | 6 | ||||||
PA800M | Single-Hook | 1350 | 400 | 8 | 12 | 39/37 | |||
Double-Hook | 800 | 4 | 6 | ||||||
PA990M | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 56 × 24.5 × 31.5 | 33/31 | |
Double-Hook | 1000 | 4 | 6 |
