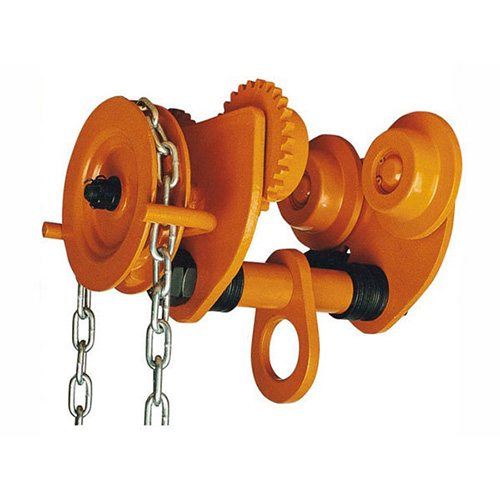

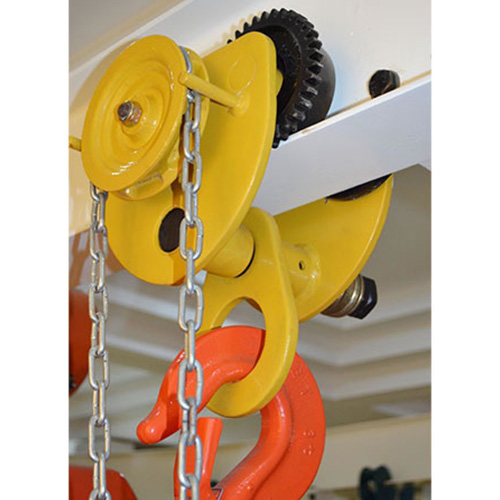

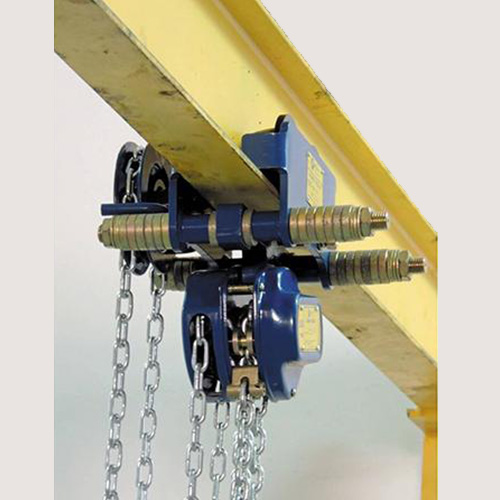

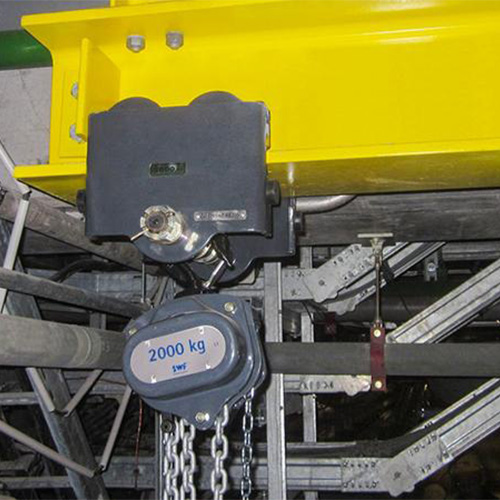

The WHLA beam trolley is hand chain driven and travels on the lower edge of the I-beam track. With the chain hoist, the trolley can be used as a bridge crane, single beam crane or cantilever crane. This product is widely used in factories, mines, wharfs, warehouses, construction sites and other related places. This trolley is especially suitable for some occasions without power supply. This trolley is compact in structure and it can work on curves with smaller turning radii. The wheel spacing of the product can be adjusted conveniently, so it can be used on various I-beams.
Parameter
| Rated loaded weight | Recommended I-beam mm | Net weight /KG |
| 0.5t | 68-94 | 11.8 |
| 1t | 68-100 | 14.7 |
| 2t | 94-124 | 17.5 |
| 3t | 100-140 | 17.5 |
| 5t | 124-180 | 34.5 |
| 10t | 142-180 | 53 |
| 20t | 136-203 | 98 |
Characteristic
The trolley can be positioned accurately and pulled easily even under heavy load.
Users can adjust the trolley according to different track widths and slopes.
Buffers can be added to this product.
The chains are made of galvanized stainless steel with better corrosion resistant performance.
All products have been tested by overloading test, and we will provide certificates and operating manuals for each product.
Matters needing attention
When lifting heavy objects, the center of its gravity should be kept in the plane where the web of the I-beam is located. Otherwise, do not lift heavy objects. When operating, the force bearing point on the hand chain should be kept in the central plane of the hand chain wheel without incline.
The I-beam plays a supporting role in the normal work of WHLA beam trolley. As a result, this trolley cannot be used on I-beams which are deformed, distorted, cracked or other defects.
